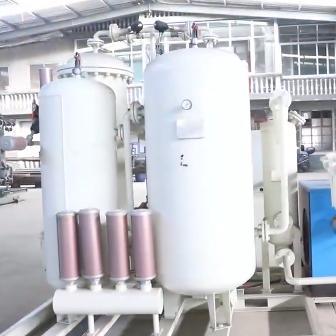

92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power

92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power
92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power 92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power 92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power 92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power

大画像 :  92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power

商品の詳細:
起源の場所: 中国
ブランド名: GNEE
証明: SGS
お支払配送条件:
最小注文数量: ≥1セット
価格: 25 every month
パッケージの詳細: 木製のボックスパッケージ
支払条件: L/C、D/A、T/T、D/P、Western Union、MoneyGram
連絡先

92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power

説明
テクノロジー: 真空圧力スイング吸着（VPSA） 流量: 100-10000NM3/h
配置方法: 垂直 始動時間: 15〜30分
テスト圧力: 0.8MPA-1.6MPA 空気圧縮機の電源: 22-110KW
キーワード: VPSAの酸素の発電機 色: 明るいまたはカスタマイズされています
消費: 省エネ 充填率: 95％
ハイライト:

92.5%-93.5% High Purity VPSA Oxygen Generator

,

15-30 minutes Start-Up Time Oxygen Production Equipment

,

22-110kW Air Compressor Power Oxygen Plant

92.5%-93.5% High Purity VPSA Oxygen Generator
Product Description

The Vacuum Pressure Swing Adsorption (VPSA) Oxygen Generator utilizes a specialized mixed bed of VPSA molecular sieve and desiccant to selectively adsorb nitrogen, CO₂, and water vapor from air, producing oxygen-enriched output at 90-95% purity. The system operates through cyclic adsorption and vacuum desorption processes.

Product Parameters
Capacity (Nm³/h) Purity O₂ Outlet Pressure (Mpa) Inlet/Outlet Connections (mm) Dimensions (mm)
2.2 - 395%±1%0.3 - 0.5DN15/G1 21200×1000×1840
3.5 - 595%±1%0.3 - 0.5DN20/G1 21350×1200×2050
6 - 795%±1%0.3 - 0.5DN25/G1 21500×1350×2350
8 - 1095%±1%0.3 - 0.5DN25/G1 21750×1550×2300
11 - 1395%±1%0.3 - 0.5DN25/G1 21750×1550×2300
14 - 1595%±1%0.3 - 0.5DN40/G1 21850×1825×2350
16 - 1795%±1%0.3 - 0.5DN40/G1 21850×1825×2350
18 - 2095%±1%0.3 - 0.5DN40/G1 22000×1900×2350
21 - 2595%±1%0.3 - 0.5DN40/G1 22100×2050×2400
26 - 3095%±1%0.3 - 0.5DN40/G1 22100×2050×2400
31 - 3595%±1%0.3 - 0.5DN50/G12000×1300×2400
36 - 4295%±1%0.3 - 0.5DN50/G12000×1300×2800
43 - 4695%±1%0.3 - 0.5DN50/G12000×1300×2800
47 - 5295%±1%0.3 - 0.5DN50/G11800×1700×2400
53 - 5695%±1%0.3 - 0.5DN50/G1-1 22100×1800×2600
57 - 6395%±1%0.3 - 0.5DN65/G1-1 22200×1500×2700
398%±1%0.5 - 1.0DN20/G1 2/
598%±1%0.5 - 1.0DN20/G1 2/
1098%±1%0.5 - 1.0DN25/G1 2/
1598%±1%0.5 - 1.0DN25/G1 2/
2098%±1%0.5 - 1.0DN40/G1 2/
2598%±1%0.5 - 1.0DN40/G1 2/
3098%±1%0.5 - 1.0DN50/G1 2/
4098%±1%0.5 - 1.0DN50/G1/
92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power 0 92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power 1 92.5%-93.5% High Purity VPSA Oxygen Generator with 15-30 Minutes Start-Up Time and 22-110kW Air Compressor Power 2
Key Advantages
  • Instant start capability with high operational efficiency
  • Fully automated operation requiring no manual supervision
  • High-efficiency molecular sieve filling for extended service life
  • Adjustable pressure and purity settings for diverse requirements
  • Robust construction ensuring safety and stability for large-scale oxygen demand
Industrial Applications
  • Chemical manufacturing processes
  • Mining operations (gold extraction, smelting)
  • Aquaculture and fish farming systems
  • Water treatment facilities (wastewater, sewage)
  • Industrial processes (brazing, ethanol production, ozone generation)
  • Glass manufacturing furnaces
  • Biogas production facilities
  • Medical oxygen supply (hospitals, veterinary clinics)
Packaging & Delivery

Each unit is securely packaged with wooden cases and anti-collision foam blocks, wrapped in stretch film and pearl cotton according to export standards. Multiple units are shipped in 20-foot or 40-foot containers with boosters and fittings packed separately in wooden cases. All fragile components including gauges, flowmeters, and controllers receive special protective packaging.

We also manufacture PSA Oxygen Generators, storage tanks, and heat exchangers. For inquiries about VPSA Oxygen Systems or related products, please contact us at info@gneeheatex.com.
