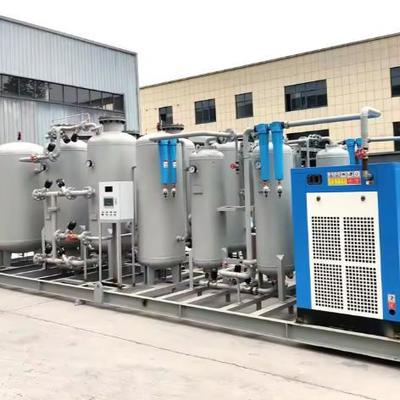

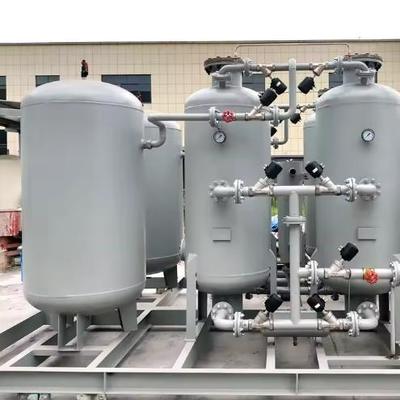

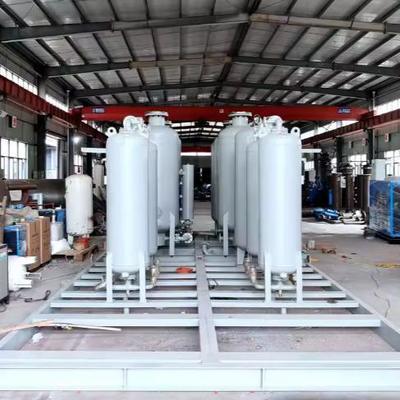

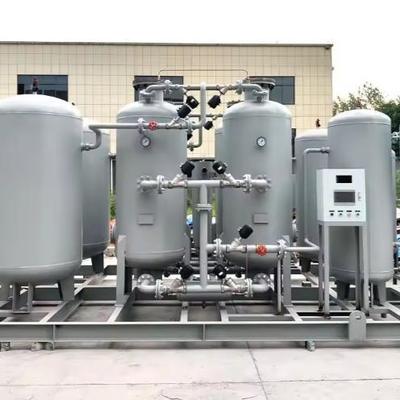

GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use

GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use
GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use

大画像 :  GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use

商品の詳細:
起源の場所: 中国
ブランド名: GNEE
証明: SGS
お支払配送条件:
最小注文数量: ≥1セット
パッケージの詳細: 木製のボックスパッケージ
支払条件: MoneyGram、Western Union、T/T、D/P、D/A、L/C
供給の能力: 毎月25
連絡先

GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use

説明
プロセス形態: 圧力振動吸着（PSA） 動作電源: 1 kW
プレッシャー: 5-6棒 容量: 3Nm3/h
寸法: 245×181×365(mm) 酸素圧力: 0.5Mpa~15Mpa
特徴: 高純度 応用: 医療、工業、養殖、廃水処理、オゾン発生など
寿命: 8〜10年 生産率: 3〜200Nm3/h
ハイライト:

Skid-Mounted PSA Oxygen Generator

,

Continuous Oxygen Supply Oxygen Gas Generator

,

Intelligent Operation Oxygen Generation Plant

GNEE On Site Oxygen Generator Manufacturers PSA Oxygen Gas Generator
The PSA oxygen generator is an intelligent on-site oxygen generator that utilizes pressure swing adsorption technology to produce high-quality oxygen with stable purity continuously. This series of pressure swing adsorption oxygen generators adopts a new product design concept and advanced oxygen production technology, featuring a skid-mounted design suitable for on-site oxygen supply of various purity levels.
Product Parameters
Air compressor Air storage tank Air Dryer Oxygen buffer tank Oxygen storage tank External dimensions(m) Total weight Power KW
GAS-7.5PCG1.2GL-10ATOT-0.2OG206.1×1.5×2.416005.5
GAS-7.5PCG1.2GL-10ATOT-0.2OG206.1×1.5×2.418005.5
GA5-7.5PCG2.4GL-10ATOT-0.6OG206.2×1.5×2.421005.5
GA7-7.5PCG2.4GL-20ATOT-0.6OG306.3×1.7×2623007.7
GA7-7.5PCG2.4GL-20ATOT-0.6OG306.4×1.7×2.625007.7
GA11-7.5PCG3.6GL-20ATOT-1.1OG506.5×1.7×3.2300011.7
GA11-7.5PCG4GL-30ATOT-1.1OG506.7×1.7×3.2350011.9
GA11+-7.5PCG4GL-30ATOT-1.1OG506.7×1.7×3.2370011.9
GA15-7.5PCG5.5GL-30ATOT-1.1OG5010.5×1.75×3.2380016
GA15-7.5PCG5.5GL-40ATOT-1.7OG5010.5×1.75×3.2385016
GA15-7.5PCG5.5GL-40ATOT-1.7OG5010.5×1.75×3.2390016
GA1S-7.5PCG5.5GL-40ATOT-1.7QGF010.5×1.75×3.2395016.5
GA18-7.5PCG6GL-60ATOT-2.1CG5011×1.75×3.2400020
GA18+-7.5PCG6GL-60ATOT-2.10G5011×1.75×3.2410020
GA22-7.5PCG6GL-60ATOT-2.1OG5011×1.75×3.2415023.5
GA22-7.5PCG8GL-60ATOT-2.6OG5011.5×1.75×3.2420023.5
GA22+-7.5PCG8GL-60ATOT-2.6OG5011.5×1.75×3.2430023.5
GA30-7.5PCG10GL-60ATOT-2.6OG5012×1.75×3.2450031.5
GA30-7.5PCG10GL-80ATOT-3OG5011.5×1.75×3.2460031.5
GA30-7.5PCG10GL-80ATOT-3OG5011.5×1.75×3.2465031.5
GA30+-7.5PCG12GL-80ATOT-3OG5011.5×1.75×3.2490031.5
GA30+-7.5PCG12GL-80ATOT-3OG5012.5x1.75x3.2500031.5
GA30+-7.5PCG12GL-80ATOT-3.6OG6012.8x1.75x3.25520031.5
GA30+-7.5PCG15GL-100ATOT-3.6OG6012.9x1.75x3.25530032.5
GA30+-7.5PCG15GL-100ATOT-3.6OG6012.9x1.75x3.25535032.5
GA30+-7.5PCG15GL-100ATOT-4OG6013x1.75x3.25540032.5
GA37-7.5PCG15GL-100ATOT-4OG6013.8x1.75x3.25545039.5
GA37-7.5PCG15GL-100ATOT-4OG6013.8x1.75x3.25550039.5
GA37-7.5PCG15GL-120ATOT-4.5OG6013.85.x19x3.25555039.7
GA37+-7.5PCG15GL-120ATOT-4.5OG6014.5x1.9x3.25580039.7
GA37+-7.5PCG15GL-120ATOT-4.5OG6014.5x1.9x3.25585039.7
GA37+-7.5PCG15GL-120ATOT-4.8OG6014.5x1.9x3.25580039.7
GA45-7.5PCG18GL-120ATOT-4.8OG6015x1.9x3.25595047.7
GA45-7.5PCG18GL-120ATOT-5006015x1.9x3.25600047.7
GA45-7.5PCG18GL-120ATOT-5OG6015x1.9x3.25605047.7
GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use 0 GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use 1 GNEE Skid-Mounted PSA Oxygen Generator with Continuous Oxygen Supply and Intelligent Operation for Industrial Use 2
How PSA Oxygen Generators Work
Composition of Air
Before understanding PSA technology, it's important to know the composition of air we breathe:
  • 78% nitrogen
  • 21% oxygen
  • 1% argon, carbon dioxide, and trace gases
Since nitrogen and oxygen make up the vast majority of air, PSA technology focuses on separating these two gases to provide high-purity oxygen.
The Principle of Adsorption
The heart of a PSA oxygen generator lies in the process of adsorption. PSA oxygen generators use a material called zeolite as the molecular sieve. Zeolite has a microporous structure that allows it to selectively adsorb nitrogen molecules while allowing oxygen to pass through.
The PSA Cycle
A PSA oxygen generator operates in a cyclic manner, alternating between high and low pressure to achieve oxygen separation:
  • Compression of Air: Ambient air is compressed and filtered to remove impurities
  • Adsorption Phase: Zeolite selectively adsorbs nitrogen while oxygen passes through (90-95% pure)
  • Desorption Phase: Pressure is reduced to release nitrogen and regenerate the tower
  • Switching Between Towers: Two towers work in tandem for continuous oxygen supply
Advantages
  • Low production cost
  • Simple process with fewer equipment components
  • High automation and operation convenience
  • Quick starting (30 minutes to full operation)
  • Can be operated intermittently
  • Low working pressure for safe operation
  • Good flexibility in adjusting oxygen purity and output
Packing & Delivery
Our PSA oxygen generators are packed with:
  • Wooden case with anti-collision foam blocks
  • Machines packed with stretch film and pearl cotton
  • Export standard packing
  • Two sets per 20ft or 40ft container
  • Boosters and fittings packed in separate wooden cases
  • Exterior signs and anti-collision protection
  • Special protection for fragile components (gauges, flowmeters, controllers)
In addition to PSA Oxygen Generators, we also produce VPSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in VPSA Oxygen Systems or other products, please contact us at info@gneeheatex.com.
