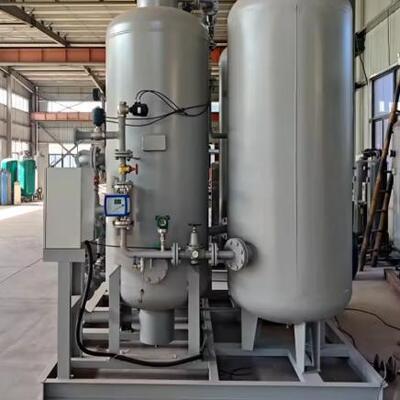

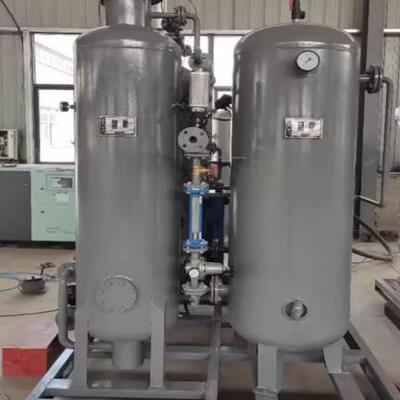

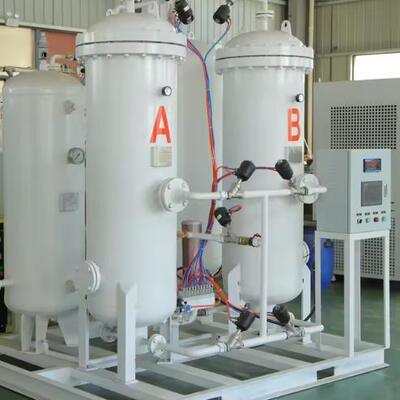

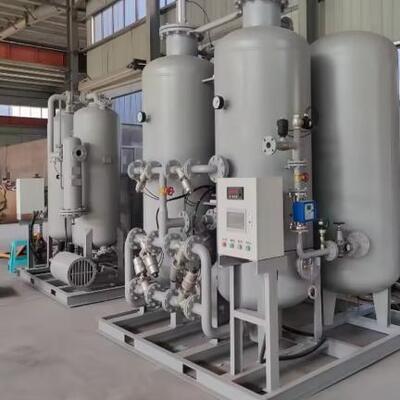

Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage

Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage
Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage

大画像 :  Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage

商品の詳細:
起源の場所: 中国
ブランド名: GNEE
証明: SGS
モデル番号: PSA
お支払配送条件:
最小注文数量: ≥1セット
パッケージの詳細: 木箱/外殻包装/円筒包装/エアバッグ包装/裸包装/海上・陸上輸送
支払条件: T/T、ウェスタンユニオン、マネーグラム、D/P、D/A、L/C
供給の能力: 毎月25
連絡先

Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage

説明
圧力を操作します: 0.1-0.5 MPa 状態: 新しい
高純度: 99.5％ 重さ: 3200 kg
酸素分析器: 付属 通り過ぎる: CE,ISO
窒素発電機型: 小規模 電源: 220V/50Hz
グローバルアフターサービス: 供給 窒素出力: 600-2500Nm3/h
アウトレット圧力: 0.6・1.0 Mpa 使用法: 窒素を生成する
ハイライト:

99.5% High Purity PSA Nitrogen Generator

,

600-2500Nm3/h Output N2 Production Unit

,

Multi-Functional Nitrogen Gas Generator

Multi-Functional PSA Nitrogen Generator
A versatile industrial gas system built on pressure swing adsorption nitrogen generation technology, utilizing carbon molecular sieve (CMS) to separate nitrogen from atmospheric air with high selectivity. This multi-functional solution seamlessly adapts to two critical applications—laser cutting and food storage—by delivering adjustable purity and flow rates tailored to each scenario. The onsite nitrogen generation equipment eliminates logistical constraints of cylinder or liquid nitrogen supply, providing continuous, on-demand nitrogen for both industrial processing and food preservation.
Core Technical Specifications
Capacity (Nm³/h) Purity (%) Construction Dimensions (mm) Inlet & Outlet Weight (Kg)
595Four towers570*450*1300G1/4; G1/4253
599Four towers580*460*1450G1/4; G1/4295
599.5Four towers1000*900*1200DN20; G1/2"370
599.9Four towers1000*900*1500DN20; G1/2"431
599.99Four towers1200*1100*1350DN20; G1/2"535
599.999Four towers1300*1200*1700DN25; G1/2"698
5Two towers1100*600*1600DN25; G1/2"510
1095Four towers1000*900*1400DN20; G1/2"414
1099Four towers1100*1050*1400DN20; G1/2"485
1099.5Four towers1100*1050*1650DN20; G1/2"510
1099.9Four towers1200*1150*1850DN20; G1/2"624
10Two towers1100*600*1600DN20; G1/2"451
1099.99Four towers1400*1300*1600DN25; G1/2"788
1099.999Four towers1500*1400*1850DN25; G1/2"1098
Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage 0 Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage 1 Multi-Functional PSA Nitrogen Generator with 99.5% High Purity and 600-2500Nm3/h Output for Laser Cutting and Food Storage 2
PSA Technology: Advanced Nitrogen Generation
PSA technology leverages carbon molecular sieve's selective adsorption to produce high-purity nitrogen from air. Compressed air enters adsorption towers where CMS adsorbs oxygen, moisture, and impurities under pressure. Nitrogen is collected as product gas while CMS is regenerated through pressure release, enabling continuous cyclic operation. Compared to VPSA systems, PSA offers faster startup times (5-10 minutes), higher operating pressure, and more compact design—ideal for dual-mode functionality.
Key Selection Criteria
  • Purity Flexibility: Adjustable purity between 99.9% and 99.999% to cover both laser cutting and food storage applications
  • Flow Rate Matching: Select capacity range (20-100Nm³/h) to accommodate peak demand of both operations
  • Material Compliance: Food-grade stainless steel components with FDA certification for food storage applications
  • Energy Efficiency: Variable frequency drive and intelligent cycle control to reduce consumption during low-demand periods
  • Manufacturer Reliability: Choose experienced suppliers with comprehensive after-sales support
  • Cost-Effectiveness: Evaluate total cost of ownership including initial purchase, energy, and maintenance
Future Technology Trends
  • Smart Integration: IoT-enabled PLC systems for remote monitoring and predictive maintenance
  • Higher Purity Precision: Advanced CMS technology for more precise purity adjustment across applications
  • Compact Modular Design: Scalable components for easy expansion as production requirements grow
  • Eco-Friendly Materials: Recyclable CMS and biodegradable seals to enhance sustainability
  • Dual-Certification Compliance: Pre-certified for both industrial (CE, ISO 9001) and food safety (FDA, HACCP) standards
Contact Us:
In addition to PSA Nitrogen Generators, we also produce VPSA Oxygen Generators, PSA Oxygen Generators, storage tanks, heat exchangers and other products. If you are interested in PSA nitrogen systems or other products, please contact us at info@gneeheatex.com.
