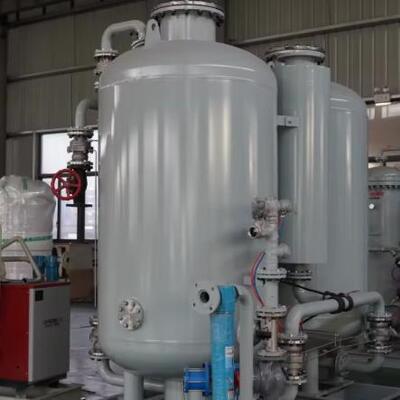

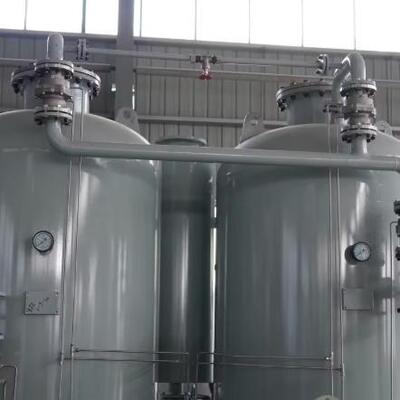

High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting

High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting
High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting

大画像 :  High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting

商品の詳細:
起源の場所: 中国
ブランド名: GNEE
証明: SGS
お支払配送条件:
最小注文数量: ≥1セット
価格: According to the product
パッケージの詳細: 木箱/外殻包装/円筒包装/エアバッグ包装/裸包装/海上・陸上輸送
支払条件: L/C、D/A、D/P、ウェスタンユニオン、T/T、マネーグラム
連絡先

High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting

説明
説明: PSA窒素ジェネレーター 労働生活: 12ヶ月
電源: 220V/380V、50Hz/60Hz 鋼材: Q235B
ミュート: はい 流量: 1 - 1000 Nm3/h
デュー・パイオント: -50°C未満 圧力を操作します: 22バー
材料: ステンレス製、炭素鋼 制御システム: PLC制御
高純度: 99.995% 製造の場所: 中国
ハイライト:

High Purity 99.995% PSA Nitrogen Generator

,

PLC Control PSA N2 Plant

,

Compact Cabinet Design Nitrogen Gas Generation Equipment

Laser Cutting Industry Cabinet Nitrogen Generators
Our PSA N2 Plant Nitrogen Gas Generation Equipment represents cutting-edge nitrogen supply technology specifically designed for industrial applications. Utilizing pressure swing adsorption nitrogen generation technology with high-performance carbon molecular sieve (CMS), this system selectively adsorbs oxygen, moisture, and other impurities from atmospheric air to produce high-purity nitrogen on demand.
Key Features
  • Compact cabinet design saves valuable floor space in metal processing workshops
  • Energy-efficient operation reduces consumption by 20-30% compared to traditional methods
  • Produces high-purity nitrogen ranging from 99.9% to 99.999%
  • Prevents oxidation during laser cutting for superior workpiece quality
  • Eliminates risks associated with cylinder transportation and storage
  • Provides continuous, real-time nitrogen supply matching laser cutting demands
Technical Specifications
Nitrogen Production (Nm³/h) Effective Air Consumption (Nm³/min) Inlet Pipe Size (DNmm) Outlet Pipe Diameter (DNmm) Host Dimensions L×W (mm)
5 0.7 25 15 1150×600
10 1.4 25 15 1250×880
20 2.8 40 15 1750×1000
30 4.2 40 25 2150×1100
40 5.6 50 25 2250×1140
50 7.0 50 25 2500×1150
60 8.4 50 25 2750×1450
80 11.2 65 32 2750×1450
100 14.0 65 32 2850×1550
200 28.0 65 32 3250×1820
300 42.0 80 40 3500×2150
High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting 0 High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting 1 High Purity 99.995% PSA Nitrogen Generator with PLC Control and Compact Cabinet Design for Laser Cutting 2
Workshop Advantages
The Cabinet Type PSA Nitrogen Generator features an integrated, space-saving design that can be placed directly beside laser cutting machines, reducing pipeline length and pressure loss. This modular approach allows for easy installation and expansion as production capacity increases.
Technology Comparison: PSA vs. VPSA
PSA technology is ideal for medium flow rates (20-100Nm³/h) and medium pressure (0.6-1.2MPa), matching the requirements of most laser cutting machines (1kW-15kW). With fast startup times (5-10 minutes) and stable operation, PSA systems are perfect for intermittent or continuous cutting processes. VPSA technology excels in large flow rates (>100Nm³/h) but requires higher initial investment, making PSA the preferred choice for small-to-medium workshops.
Additional Products & Contact Information
In addition to PSA Nitrogen Generators, we also manufacture VPSA Oxygen Generators, PSA Oxygen Generators, storage tanks, heat exchangers, and other industrial equipment. For more information about our PSA nitrogen systems or other products, please contact us at info@gneeheatex.com or visit our contact page.
