商品の詳細:
|

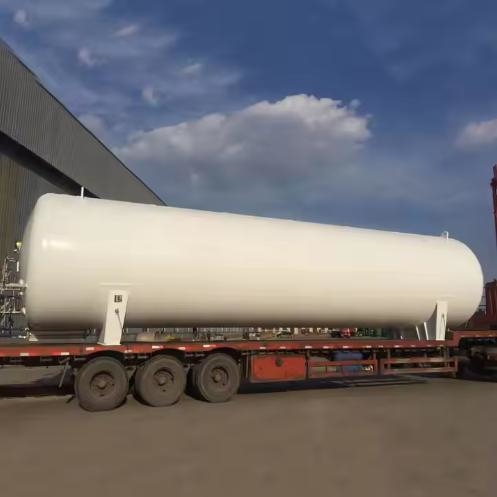

| ハイライト: | horizontal cryogenic N2 storage tank,0.8MPa liquid nitrogen tank,100m3 cryogenic storage tank |
||
|---|---|---|---|

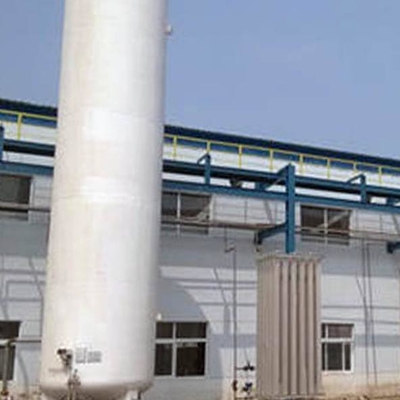

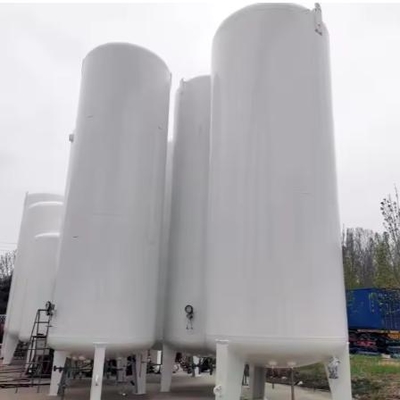

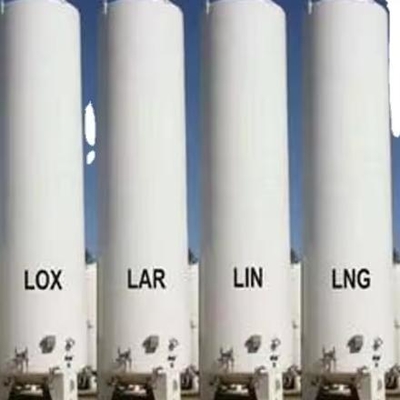

This cryogenic liquid oxygen storage tank features a double-wall construction with 304/316 stainless steel inner material and Q235B carbon steel outer material. Available in both vertical and horizontal configurations, it utilizes vacuum powder insulation for superior thermal efficiency. The design offers compact structure, low evaporation rate, small footprint, centralized control, and safe, reliable operation with easy maintenance.
| Nominal Volume (L) | Effective Volume (L) | Maximum Filling Volume (kg) | Daily Evaporation Rate | Max Working Pressure (MPa) | Outer Diameter (mm) | Total Height (mm) | Empty Weight (kg) |
|---|---|---|---|---|---|---|---|
| 10,523 | 10,000 | 8,100 / 11,410 / 13,930 | 0.495 | 0.8 | 2,300 | 5,850 | 6,280 |
| 10,523 | 10,000 | 8,100 / 11,410 / 13,930 | 0.495 | 1.6 | 2,300 | 5,850 | 7,250 |
| 21,000 | 20,000 | 16,200 / 22,820 / 27,860 | 0.45 | 0.8 | 2,600 | 7,880 | 9,850 |
| 21,000 | 20,000 | 16,200 / 22,820 / 27,860 | 0.45 | 1.6 | 2,600 | 7,880 | 12,335 |
| 31,600 | 30,000 | 24,316 / 34,255 / 41,820 | 0.396 | 0.8 | 2,600 | 10,820 | 14,625 |
| 31,600 | 30,000 | 24,316 / 34,255 / 41,820 | 0.396 | 1.6 | 2,600 | 10,820 | 14,625 |
| 52,600 | 50,000 | 40,500 / 57,050 / 69,650 | 0.315 | 0.8 | 3,000 | 12,590 | 21,550 |
| 52,600 | 50,000 | 40,500 / 57,050 / 69,650 | 0.315 | 1.6 | 3,000 | 12,590 | 26,000 |
| 106,200 | 100,000 | 81,000 / 114,100 / 139,300 | 0.245 | 0.8 | 3,400 | 19,500 | 45,000 |
| 106,200 | 100,000 | 81,000 / 114,100 / 139,300 | 0.245 | 1.6 | 3,400 | 19,500 | 45,000 |
Our manufacturing process ensures strict quality control at every stage to deliver storage tanks that meet all industry standards and customer requirements.
We specialize in customized storage tank solutions including special volumes, explosion-proof grades, and low-temperature adaptations. Contact our engineering team for specific technical proposals.
