商品の詳細:
|
| Item: | cryogenic storage tank | Color: | white |
|---|---|---|---|
| Keywords: | lng storage tank for sale | Package: | Sea or land transportation |
| Advantage: | Long Service Time | Working Temperature: | -196 - 0 ℃ |
| Working Years Design: | 20years | Piping Material: | Stainless steel |
| Insulation: | vacuum powder | Capacity: | 5000 liters |
| ハイライト: | 80L hydrogen cryogenic cylinder,5 M³ liquid oxygen storage tank,cryogenic storage tank with warranty |
||
| Attribute | Value |
|---|---|
| Item | cryogenic storage tank |
| Color | white |
| Keywords | lng storage tank for sale |
| Package | Sea or land transportation |
| Advantage | Long Service Time |
| Working Temperature | -196 - 0 ℃ |
| Working Years Design | 20years |
| Piping Material | Stainless steel |
| Insulation | vacuum powder |
| Capacity | 5000 liters |

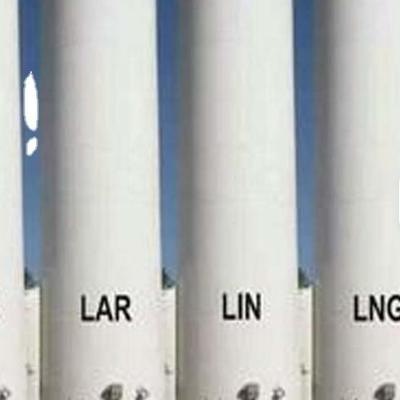

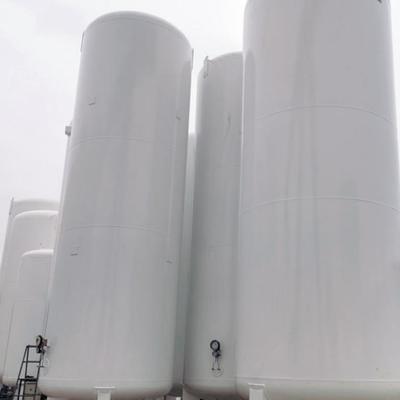

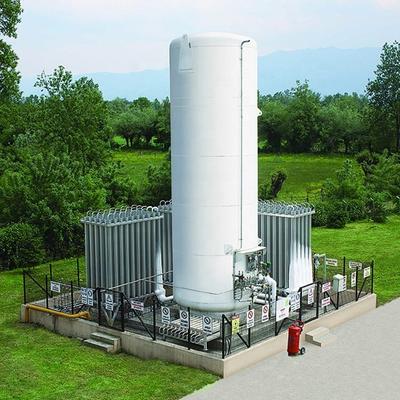

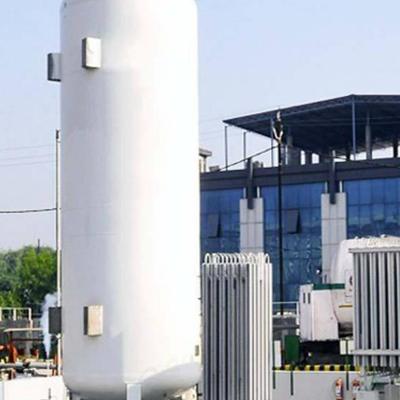

Cryogenic Storage Tank is a kind of high-performance vacuum insulated container, which is used to store and transport cryogenic liquid oxygen, nitrogen, argon, carbon dioxide, liquefied natural gas or nitrous oxide. It can be used for road transportation of cryogenic liquid, and also can be used for on-site storage and supply. Long storage time, wide range of applications, can provide up to 9.2 cubic meters per hour continuous flow with a delivery pressure of approximately 100psig (6.9bar/690Kpa).
| Inner tank/outer tank material | S30408/Q345R(CO2inner tank:16MnR) |
|---|---|
| Operation pressure | 0.2/0.8/1.2/1.6/2.8 MPa |
| Volume (m3) | 5 | 10 | 15 | 20 | 30 | 50 | 60 | 100 | 150 | 200 | 250 |
|---|---|---|---|---|---|---|---|---|---|---|---|
| Inner tank size (m) | 1.4 | 1.8 | 1.8 | 2 | 2.2 | 2.5 | 2.7 | 3 | 3.3 | 3.5 | 3.6 |
| Outer tank size (m) | 1.9 | 2.3 | 2.3 | 2.5 | 2.7 | 3 | 3.2 | 3.5 | 3.8 | 4 | 4.1 |
| Daily evaporation rate(%/d)o2 | 0.4 | 0.36 | 0.35 | 0.33 | 0.29 | 0.23 | 0.21 | 0.16 | 0.14 | 0.13 | 0.12 |
Our company is a professional manufactory of large storage tanks, it contains the design, provided steel material and overseas installation. Professional engineers and construction teams, all the tanks are made in accordance with international standards.
The large storage tanks of various specifications and models can be made. We can choose different types and different materials storage tanks according to the properties of the materials.
