商品の詳細:
|
| デザイン 圧力: | 22.7bar | 外部材料: | Q345R |
|---|---|---|---|
| 機械試験報告: | 提供 | 内容: | LO2、LN2、Lar、LCO2、LNG。 |
| 有効な容積: | 5～200m3 | 配置方法: | 横軸 |
| キーワード: | 水平型冷凍貯蔵タンク | 満たす比: | 95% |
| 保証: | 一年 | 作業温度: | -196 - 0 °C |
| 断熱材の種類: | バキューム隔離 | 特徴: | 高効率 |
| ハイライト: | 水平型LNG極低温貯蔵タンク,200m3 LNG極低温貯蔵タンク,5m3 極低温貯蔵タンク |
||

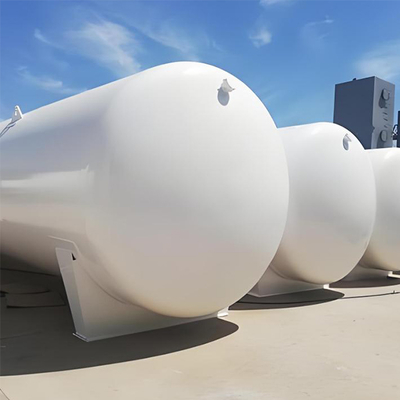

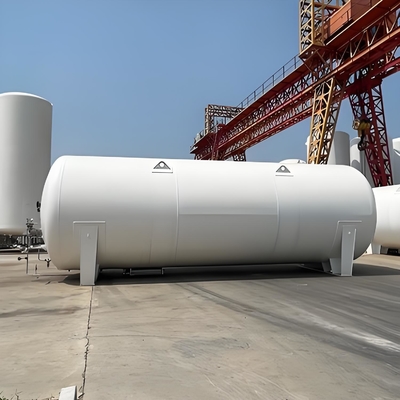

The LNG Horizontal storage tank is meticulously constructed with an inner container and an outer shell, both designed to ensure maximum durability and safety.
The tank also includes robust support structures, a sophisticated process piping system, and high-quality thermal insulation material

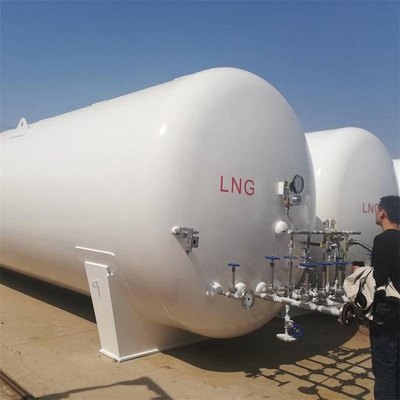

In horizontal tanks, the pipelines are integrated on one side of the head.
This design facilitates easy access for unloading and maintenance, making it convenient for operations requiring frequent monitoring and adjustments.
| Gross Capacity (Water) |
MAWP | NRE % (Daily) | Insulation | Outside Diameter | Overall Length | Weight (Empty) |
|||||
| Gallons | m3 | PSIG | barg | NRE % (Daily) | in | mm | in | mm | Kg | Lb | |
| 30,000 | 113.5 | 175 | 12.07 | 0.15-0.3 | Perlite/Vacuum | 150 | 3,800 | 600 | 15,225 | 20,547 | 45,300 |
| 60,000 | 227.12 | 175 | 12.07 | 0.15-0.3 | Perlite/Vacuum | 150 | 3,800 | 1,227 | 31,181 | 54,431 | 120,000 |
| 90,000 | 340.69 | 175 | 12.07 | 0.15-0.3 | Perlite/Vacuum | 150 | 3,800 | 1,790 | 45,501 | 134,200 | 295,860 |
| 120,000 | 454.25 | 175 | 12.07 | 0.15-0.3 | Perlite/Vacuum | 205 | 5220 | 1,247 | 31,699 | 128,300 | 282,853 |
| 200,000 | 757 | 175 | 12.07 | 0.15-0.3 | Perlite/Vacuum | 257 | 6524 | 1,238 | 31,469 | 193,250 | 426,043 |
